Insulation Services Before & After Photos

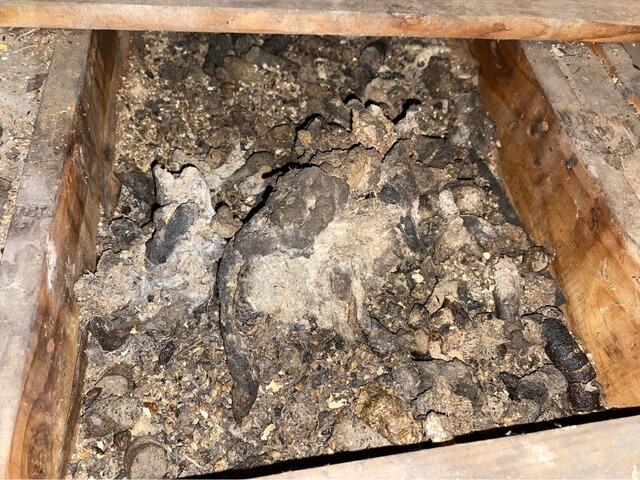

Nick called from Weirton Wv called Home Environment Solutions saying that he would like to make an appointment for someone to determine why his upstairs stays warm in the summer and colder in the winter.  So we sent our expert Russ to his home to perform a free home energy audit. When Russ arrived he found old rock wool loose  insulation, unsealed pipe and wire runs and no insulation on the scuttle cover.

Our insulation team removed all the old rock wool insulation and disposed of it. Air sealed and insulated scuttle cover with Silverglo. Installed a layer Of 4'' SilverGlo along attic deck then covered with 3/8'' board. Sealed chimney chase with metal flashing, fire caulk and wrapped with rock wool sleeve. Upgraded Ceiling Over Shower/ Bath by covering opening with wood or foam boards and sealed with ZypFoam expandable foam. Air sealed attic assembly and all accessible penetrations with Zypfoam.  Installed Trusoft cellulose on attic floor.

Sam reached out after dealing with cold floors, high energy bills, and major temperature swings upstairs. On top of that, ice damming started forming along the roofline; one of the biggest signs that heat is escaping into the attic.

When we evaluated the home, we found the root of the problem: very little insulation in the attic and multiple air leakage points. Without enough insulation and proper air sealing, warm air rises into the attic, melts snow on the roof and causes ice to refreeze at the edges creating ice dams.

Our team focused on rebuilding the attic system from the ground up. We sealed attic air leaks, sealed top plates and soffit areas, addressed chimney-related leakage, and insulated the attic access opening. Then we installed proper insulation levels to create a strong, consistent thermal barrier.

By stopping air movement and adding the right amount of insulation, we were able to control heat loss at the source. Now the attic is properly sealed and insulated, the home holds temperature more consistently, and the conditions that cause ice damming have been significantly reduced.

Rick reached out because the second floor of his home was difficult to keep comfortable. Like many two-story homes, the upstairs would get too hot in the summer and struggle to maintain consistent temperatures throughout the year. On top of that, high energy bills suggested the home was losing more conditioned air than it should.

When we evaluated the attic, we found several air leakage pathways allowing heat and conditioned air to move freely between the living space and the attic.

One area that required special attention was where the attic transitioned over the front and rear porch sections of the home. These areas are often overlooked during insulation projects and can become major sources of energy loss if they aren't properly separated from the conditioned space.

Our team sealed attic air leaks, sealed top plates and penetrations, insulated the attic access opening, and addressed airflow around the soffit areas. We also built insulation dams along the front and rear porch wall transitions to ensure insulation stayed where it belonged and provided continuous thermal protection.

By creating a stronger thermal boundary and reducing uncontrolled airflow, we helped the attic perform the way it was designed to. Now the upstairs stays more comfortable, temperatures are more consistent throughout the home, and energy efficiency has improved.

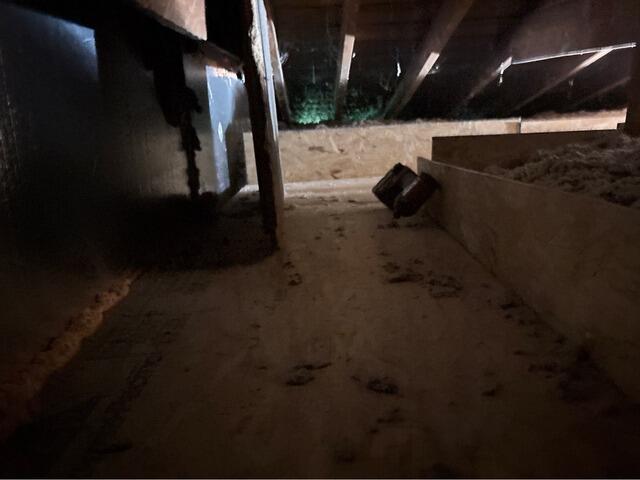

Matt and Lori, in Chester, WV, called with concerns about their access, insulation, and air escaping around the chimney in the attic space. Our home energy expert, Russ, provided them with solutions for to resolve these issues. Our team removed and disposed of existing insulation and prepared the work space for the installation of fresh, clean insulation. A SuperPlatform Catwalk was installed, made of 4" SilverGlo and 3/8" OSB boards to secure a walkway, while providing vertical retention dams as needed to hold blown-in insulation. They also enlarged and insulated the scuttle hatch cover with ZypFoam and SilverGlo fasteners, for easier access to the attic space equipment. Baffles were installed along the perimeter and Zypfoam was used anywhere air was penetrating the exterior walls and the top plate. The team wrapped up by wrapping the chimney with Rockwool and sealed with Fire Caulk.

From inadequate and uneven to R60 all over and storage area
